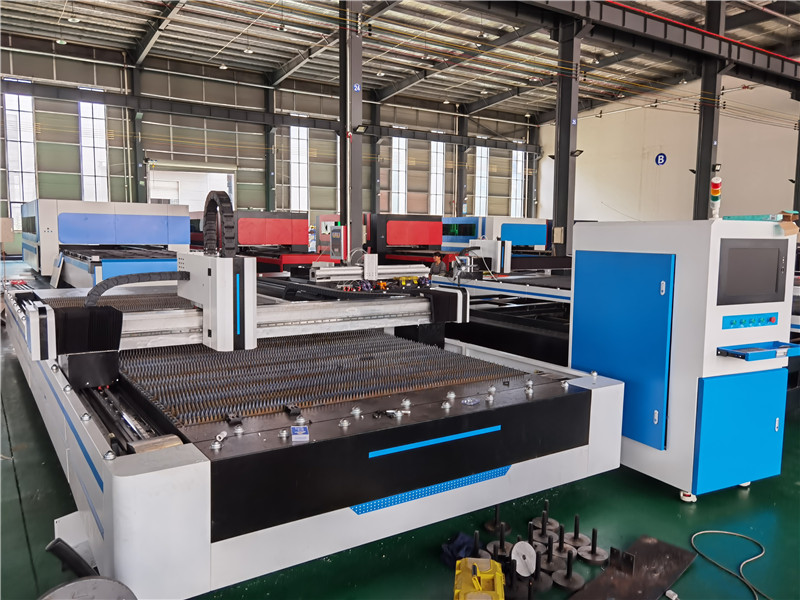

High strength, high rigidity box type welding machine frame, high precision linear guide and rack driving and bilateral drive system to strengthen the accuracy and stability of the machine running ; Integrally cast aluminum beam, strong rigidity, light weight, small inertia, fast response, machine acceleration of 0.6 G, empty moving speed of 72 m/s, improving the processing ability of the equipment. Equipment machining accuracy for a long time to keep within + / – 0.05 mm.

Independent, professional smoke dust, smoke dust effect is good, good working environment of the factory.

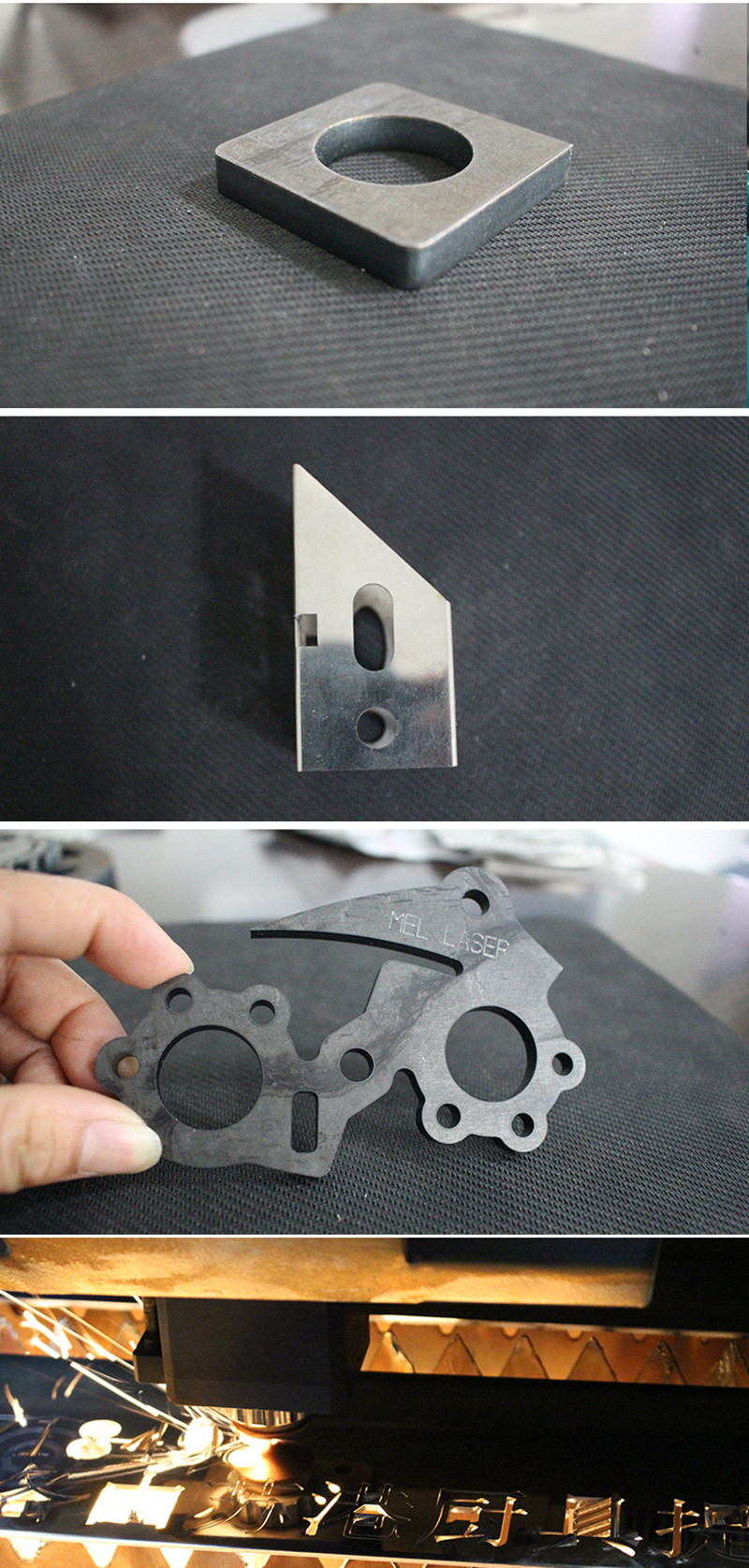

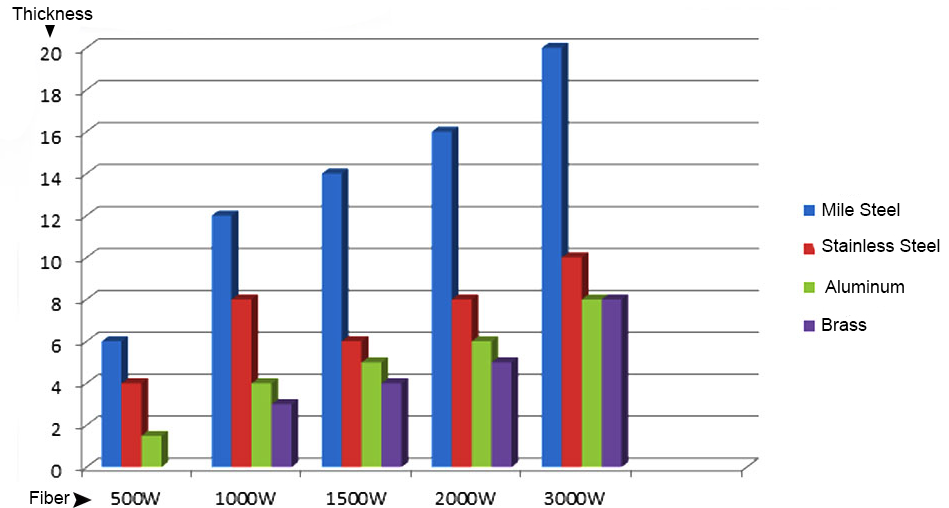

Applicable materials: professional used to cut thin sheet metal, in a variety of high-quality cutting 0.5 ~ 5mm carbon steel sheet, 0.5 ~ 2.5mm stainless steel plate, can also be cutting aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate and other metal materials.

Main features:

1, photoelectric conversion efficiency can reach 30%, two times that of CO2;

2, less consumption of power source, CO2 is 20% ~ 30%;

3, no laser working gas, can save a lot of laser maintenance cost;

4, optical fiber transmission, without reflection lens, do not need to adjust the light path.

Product features:

1,Gantry double drive structure, smooth and reliable movement;

2,Independent research and development design, the manufacture of machine tool bed, special processing technology, machine tool precision, stable and reliable, long life;

3,Precision gear rack drive, with high response and high precision servo motor;

4,The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;

5,High precision laser cutting head, imported optical lenses, is focused on the fine, the  adjustment is convenient, cutting perfect;

6,A double closed-loop control capacitive height controller, low requirement to the steel sheet, cutting quality is stable and reliable;

7,CNC system is concise and easy operation, low requirements for the operator;

8,Cutting graphic input multiple formats, powerful draw and edit graphics function;

9,Special cutting software, cutting technology experts, data call functions;

Basic configration:

Laser cutting Machine tool technology parameters
