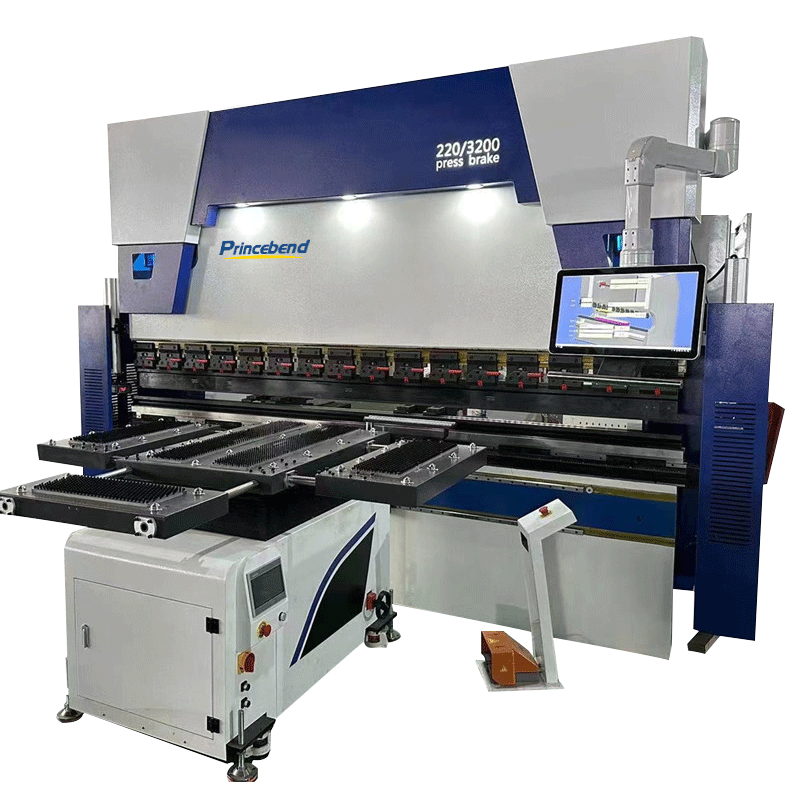

8+1 axis CNC Hydraulic Press Brake Delem DA69T CNC System with Y1 Y2 X1 X2 R1 R2 Z1 Z2 axis +V Crowning

Primapress cnc servo press brake features an CNC crowning system for improved quality, a servo driven back gauge system for increased speeds,

and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increased working speeds, stroke, daylight,

and pressing capacities of GENIUS Series machines. The future – as a result of rising energy costs and increasingly cost efficient speed-controlled

drives offered on the market, variable-speed solutions are on the advance.

X: Backgauge front and back; Y1,Y2: Left and right oil cylinder stroke
R : Backgauge up and down; Z1,Z2: Left and right stopper movement
V: Worktable crowning

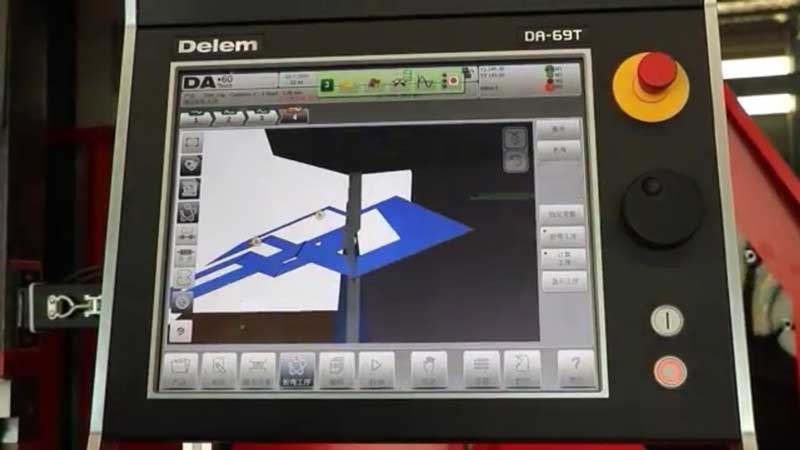

DA69T CNC Controller features:

* 3D and 2D graphical touch screen programming mode
* 3D visualisation in simulation and production
* 17″ high resolution colour TFT
* Full Windows application suite
* Delem Modusys compatibility (module scalability and adaptivity)
* USB, peripheral interfacing
* User specific application support within the controllers multitasking environment
* Sensor bending & correction interface
* Profile-T3D offline software

Main configuration

The standard accessories are in the below:

1. Anchor bolt 2. Hex nut 3. Seal ring 4. Gasket 5. Grease gun6. Allen wrench 7. Foot switch 8. Front support arms

9. Electrical box key, control panel key 10. Operation manuals
